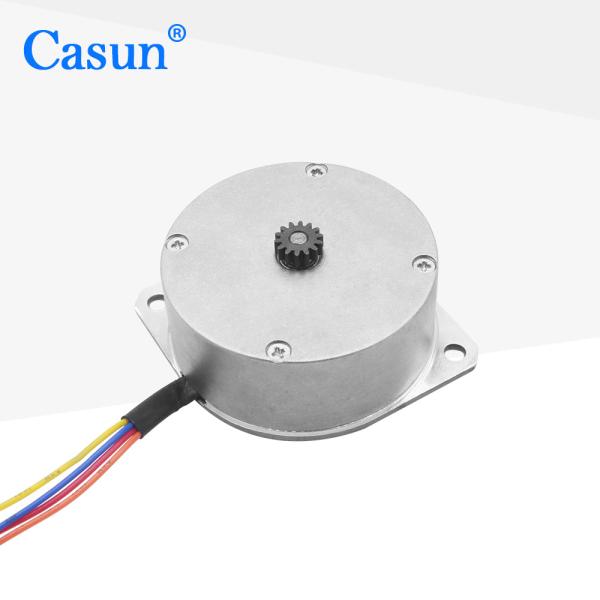

hybrid step motor flat Stepper Motor 1.8 Degree 2 Phase 1.75 V Nema Pancake Stepper Motor

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Please click the "Get a quote" button below to tell us your requirements.

"Casun" as a national brand, we have a reputation for providing unmatched application support, consistent quality and unique products.

Starting with a wide range of hybrid stepper motorsour product line has expanded to include linear actuators, BLDC motors, PM motors and more.

Our products and solutions are widely used in automation, robot textile, printing, packaging, medical equipment, logistics, communications, home appliances, agriculture and other industries,

exported to the United States, Germany, Switzerland, Italy, France, Russia and other more than 30 countries and regions.

We can easily configure according to the specific requirements of customers, which provides key guarantee for the stability and reliability of products.

After years of efforts, we have become one of the most influential brands in the motor industry. Continue to provide global customers with appropriate, value, professional control motor manufacturing and R&D services.

‘Casun’ is the brand created by Guangzhou FUDE Electronic Technology Co.,Ltd.

Brand for more than 15years.

We have some budget for global marketing promotion every year.

In addition,We have 36+ patents of product technologies and various international certifications,

such as ISO9001, CE , ROHS.

What’s more,we established a complete quality inspection process from IQC,FQC to OQC

Our Vision:Becoming a world-class motor manufacturer.

Our Mission:Speed up the development of automatic industry.
